Description
Technical data of M36x1,5 hand tapping machine
| Technical data | |
|---|---|
| Nominal diameter d1 mm | M36 |
| Thread pitch P mm | 1,5 mm |
| Overall length l1 | 144 mm |
| Length of working part l2 | 39 mm |
| Diameter of the shank part d2 | 25 mm |
| Size of square drive a | 20 mm |
| Threaded bore diameter | 34.5 mm |
| Thread angle G | 60 degrees |
| Thread standard | ISO DIN 13 |
| Thread tolerance | ISO2 6H |
M36x1.5 fine thread hand taps
Hand Tap M36X1.5 DIN 2181/2 6H HSS is designed for making metric M36 fine-coil threads with a pitch of one and a half millimeters in steels up to eight hundred mega pascals; in workshop practice, a predictable machining course is provided here by hand Tap M36x1.5 used in a sequence of two passes.
Performance parameters: nominal diameter thirty-six millimeters; pitch one and a half millimeters; outline sixty degrees according to ISO 68-1; tolerances according to ISO 965 (bore class 6H); right-hand direction; straight chip grooves for controlled evacuation. The high-speed steel execution in the ground version stabilizes the cutting edge and reduces micro chipping. In accordance with DIN 2181/2, a two-part arrangement - first (starting) and second (finishing) - equalizes torsional loads and promotes alignment; in serial operation, the order of passages is ordered by Set Taps Manual M36x1.5.
- Guidance control - the inserting and finishing members form the profile gradually, reducing torque pulsations and the risk of jamming.
- High edge life - high speed steel maintains low micro roughness after grinding, slowing blunting in structural steels.
- 6H fit accuracy - effective diameter maintained within tolerance area facilitates positivepass/fail test.
- Set of M36x1.5 Hand Taps - Clear member markings reduce selection time and maintain consistency between passes.
Meeting the requirements of DIN 2181/2 (execution), ISO 68-1 (sixty-degree outline) and ISO 965 (bore tolerances class 6H) ensures interoperability with measuring equipment and repeatability of results in unit and short-run machining.

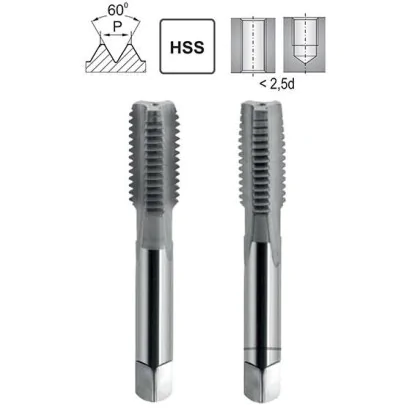

M36x1.5 thread cutting stages in a 2-piece set: ripper and finisher
Frequently asked questions
1. What is the pre-drilled hole for M36x1.5?
Drill 34.5 mm (36 mm diameter minus 1.5 mm pitch) to get the correct profile fill in Class 6H.
2. Is the M36x1.5 DIN 2181 tapping suitable for blind holes?
Yes, the set can be used in both through-holes and blind holes, according to DIN 2181 and Class 6H.
3. What are the advantages of being made of HSS?
HSS high-speed steel provides high durability, wear resistance and stable operation even under demanding conditions.
