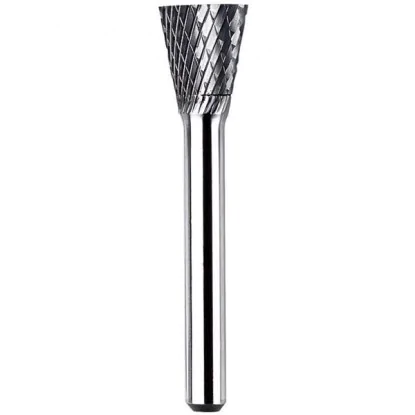

Carbide rotary burr inverted conical N Fi 12 mm VHM

Producer: Artykuły Techniczne

reference: 14611

€10.68 tax inc.

Net price: €8.68

Instant Shipping

In stock > 10 pcs.

Instant Shipping

Call and order: (44) 755-04-05

Description

Technical data of rotary file WKN fi 12

Technical data
Working diameter D	fi 12 mm
Length of working part l	12 mm
Overall length L	60 mm
Diameter of shank part	6 mm

Obróbka pilnika obrotowego stożkowego odwróconego

Application of rotary file by Varel:

Steel, Stainless steel, Cast iron, Aluminum
Coarse and fine material removal
Removal of allowances after welding
Smoothing of flat surfaces

Cutting parameters of rotary inverted conical file Fi 12 mm

ISO symbol	Material	Cutting speed Vc [m/min]	Revolutions n [obr/min]
P	Steel	250-600	7000
M	Stainless steel	250-350	7000
K	Cast iron	450-600	1200
N	Aluminum and non-ferrous materials	250-350	7000

Carbide rotary burr reverse taper fi 12 - a precision tool for special tasks

Carbide rotary burr inverted conical fi 12 is a high-quality tool designed for precision machining of metal materials. Its inverted conical shape allows you to work comfortably in hard-to-reach places, ensuring accurate and professional results. The use of high-quality materials, such as tungsten carbide, guarantees exceptional durability and resistance to wear, even under intensive use.

Carbide rotary burr made of carbide - reliability and durability

Carbide manufacture gives this tool extraordinary durability. Carbide rotary burr carbide is perfect for working with hard materials such as stainless steel, cast iron and other metals. Its abrasion resistance and longevity make it the tool of choice for professionals and hobbyists alike. The file allows you to quickly and accurately remove bumps, smooth edges and shape surfaces.

Metal drill file - versatility in your workshop

Thanks to its universal holder, the metal file fits most models of drills on the market. It takes just a few moments to mount the file on the drill, allowing you to work effectively in all conditions. The tool is ideal for machining various metal surfaces - from deburring to smoothing and finishing details. Carbide rotary burr it is an indispensable piece of equipment for any workshop.
