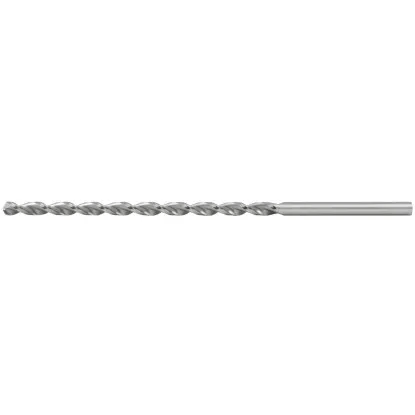

Metal drill bit 18 extra long 335/245 HSS DIN 1869
€56.64 tax inc.
Net price: €46.05
Description
Technical data of extra long drill fi 18
| Technical data | |
|---|---|
| Working diameter of drill d | Ø18 mm |
| Overall length l1 | 335 mm |
| Flute length l2 | 245 mm |
Cutting data for the Ø18 mm HSS NWKp extra-long drill bit
| Material | Cutting speed Vc [m/min] | Feed per revolution f [mm] | Spindle speed n [rpm] | Total feed rate [mm/min] |
|---|---|---|---|---|
| PSteel | 12-21 | 0.18 | 212 | 38 |
| KCast iron | 10-15 | 0.18 | 177 | 32 |
| NCopper and alloys | 12-25 | 0.22 | 212 | 47 |
May be useful
Cutting parameters calculator
Extra-long straight-shank twist drills for machining steel and cast iron in a wide range of general-purpose applications. Their extended design allows deep-hole drilling and operation with increased tool reach beyond the workpiece. They are suitable for carbon steel, free-cutting steel, structural steel, gray cast iron, aluminum bronze, nickel silver (Cu-Zn-Ni alloy), tin-zinc bronze, electronic-grade copper, and ductile brass. They provide productive, precise drilling even under demanding operating conditions.
Extra long drill bit for metal 18
Ø18 extra-long metal drill bit is a straight-shank twist drill intended for steel and cast iron in typical workshop and industrial tasks. Its exceptional length makes it ideal for deep-hole drilling and wherever increased tool reach is required. It can machine carbon steel, free-cutting steel, structural steel, gray cast iron, aluminum bronze, nickel silver (Cu-Zn-Ni alloy), tin-zinc bronze, electronic-grade copper, and ductile brass. It can also drill alloy steel with an ultimate tensile strength Rm up to 1200 N/mm², zinc alloys and zinc, and malleable cast iron.
This professional extra-long straight-shank twist drill is ground in accordance with DIN 1869 from modern, high-grade high-speed steel (HSS) and meets the requirements of the Polish NWKp standard. The 118° point angle allows drilling to begin without prior center drilling (center punching). Available in our store Ø18 extra-long metal drill bit in the NWKp version has a diameter of 18 mm and lengths of 335/245 (overall length / flute length) and is designed for drilling very deep holes. The properties of HSS provide high resistance to demanding operating conditions, including the high temperatures generated during high-speed drilling. This results in more productive and accurate machining — holes remain straight along their entire length and have low surface roughness. The tool performs well on both conventional drilling machines and modern CNC machine tools.
