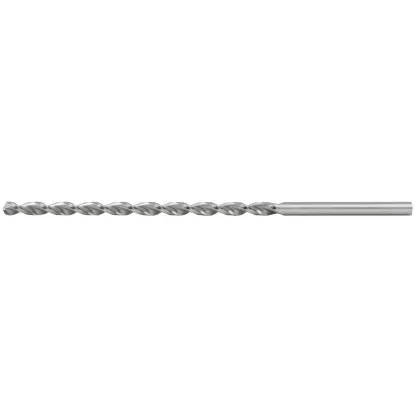

Metal drill bit 16 extra long 340/235 HSS DIN 1869
€51.79 tax inc.
Net price: €42.11
Description
Technical data of extra long drill fi 16
| Technical data | |
|---|---|
| Working diameter of drill d | Ø16 mm |
| Overall length l1 | 340 mm |
| Flute length l2 | 235 mm |
Cutting data for the Ø16 mm HSS NWKp extra-long drill bit
| Material | Cutting speed Vc [m/min] | Feed per revolution f [mm] | Spindle speed n [rpm] | Total feed rate [mm/min] |
|---|---|---|---|---|
| PSteel | 12-21 | 0.12 | 239 | 29 |
| KCast iron | 10-15 | 0.12 | 199 | 24 |
| NCopper and alloys | 12-25 | 0.16 | 239 | 38 |
May be useful
Cutting parameters calculator
Extra-long straight-shank twist drills designed for general-purpose drilling in steel and cast iron. They are suitable wherever deep holes or increased tool reach beyond the workpiece surface are required. The range of materials includes carbon steel, free-cutting steel, structural steel, gray cast iron, aluminum bronze, nickel silver (Cu-Zn-Ni alloy), tin-zinc bronze, electronic-grade copper, and ductile brass. The tool is designed for highly productive, precise drilling, even under heavy-duty operating conditions.
Extra long drill bit for metal 16
Ø16 extra-long metal drill bit is a straight-shank twist drill designed for steel and cast iron in typical workshop and industrial applications. Its exceptional length allows deep-hole drilling and operation with extended tool reach. The range of materials includes carbon steel, free-cutting steel, structural steel, gray cast iron, aluminum bronze, nickel silver (Cu-Zn-Ni alloy), tin-zinc bronze, electronic-grade copper, and ductile brass. It can also drill alloy steel with an ultimate tensile strength Rm up to 1200 N/mm², zinc alloys and zinc, as well as malleable cast iron.
This professional extra-long straight-shank twist drill is ground in accordance with DIN 1869 from modern, high-grade high-speed steel (HSS). The tool meets the requirements of the Polish NWKp standard. The 118° point angle allows drilling to begin without prior center drilling (center punching). Available in our store Ø16 extra-long metal drill bit in the NWKp version has a diameter of 16 mm and lengths of 340/235 (overall length / flute length), making it ideal for drilling very deep holes. HSS provides high resistance to demanding operating conditions, including the heat generated during high-speed drilling. This enables more productive and precise machining — holes remain straight along their entire length and have low surface roughness. These drill bits perform well on both conventional drilling machines and modern CNC machine tools.
