Description
Technical data for the 29 mm end mill
| Technical data | |
|---|---|
| Cutter Diameter D | 29 mm |
| Shank Diameter d | 25 mm |
| Overall Length L | 121 mm |
| Flute Length l | 45 mm |
| Shank Length l1 | 56 mm |
| Number of Teeth Z | 4 |
Cutting parameters of end mill fi 29 mm
| Material | Cutting speed Vc [m/min] | Feed per tooth fz [mm] | Spindle speed n [rpm] | Total feed rate [mm/min] |
|---|---|---|---|---|
| PSteel | 30 | 0.080 | 329 | 105 |
| MStainless steel | 18 | 0.070 | 198 | 55 |
| KCast iron | 20 | 0.080 | 220 | 70 |
| NAluminum | 60 | 0.040 | 659 | 105 |
May be useful
Cutting parameters calculator

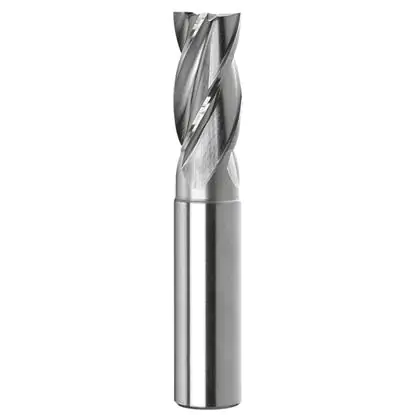

End mill 29 mm for metal
End mill 29 mm for metal NFPa DIN-844, used for face and peripheral milling. It features a shank to DIN 1835, a 30° helix angle and a properly balanced core that helps minimize deflection and reduce ridging on the machined surface. Suitable for use on conventional machine tools and modern computer-controlled CNC machines. The end mills available in our store are suitable for medium-precision machining and finishing. Recommended for milling hard materials in classes P1.2 – P1.3. End mills Ø28mm for metal are manufactured to the latest standards from special high-speed steel (HSS). Its properties make the cutters resistant to chipping and provide a long service life.
