Description
Technical data of extra long fi 4 HSS drill bit
| Technical data | |
|---|---|
| Working diameter of drill d | fi 4mm |
| Overall length l1 | 175 mm |
| Length of working part l2 | 120 mm |
Cutting parameters of extra long drill fi 4 mm HSS NWKp
| ISO symbol | Material | Cutting speed Vc [m/min] | Feed per revolution f [mm] | Revolutions n [obr/min] | Total feed rate [mm/min] |
|---|---|---|---|---|---|
| P | Steel | 12-21 | 0,04 | 955 | 38 |
| K | Cast iron | 10-15 | 0,04 | 796 | 32 |
| Copper and alloys | 12-25 | 0,05 | 955 | 48 |
May be useful
Cutting parameters calculator
Extra-long twist drills with cylindrical shank for steel and cast iron for general use. The recommended use is for deep holes, or when greater tool overhang is required. Use in: carbon steel, auto steel, structural steel, gray iron, aluminum bronze, new silver Cu Zn Ni alloy, gray iron, tin-zinc bronze, electronic copper malleable brass. High-performance drilling; precision, heavy duty.
Extra-long metal drill bit 4 HSS
Drill bits very long for metal fi 4 twist very long with cylindrical shank for steel and cast iron of general use. The recommended use is for making deep holes, or when greater tool overhang is required. Application in: carbon steel, auto steel, structural steel, gray iron, aluminum bronze, new silver Cu Zn Ni alloy, gray iron, tin-zinc bronze, electronic copper malleable brass. It is permissible to drill in alloy steel that has a tensile limit Rm 1200 N/mm2, zinc alloy, zinc, malleable cast iron
Product accessories
Metal drill bit 4 extra long 280/190 HSS DIN 1869
Reference: 0000003968 In stock < 10 items
€3.82
€4.69 brutto
Metal drill bit 4.5 extra long 235/160 HSS DIN 1869
Reference: 0000007927 In stock < 10 items
€3.68
€4.53 brutto
Metal drill bit 3.5 extra long 165/115 HSS DIN 1869
Reference: 10639 In stock > 10 items
€2.50
€3.08 brutto
Reviews
No customer reviews for the moment.
Shipping
All orders are delivered by courier company GLS. For orders exceeding 369 PLN gross shipping is FREE
| Courier GLS | Przelew24 / Prepayment | 14,76 zł gross | Delivery time 1 working day |
| Courier GLS | Cash on delivery | 17,26 zł gross | Lead time 1 working day |

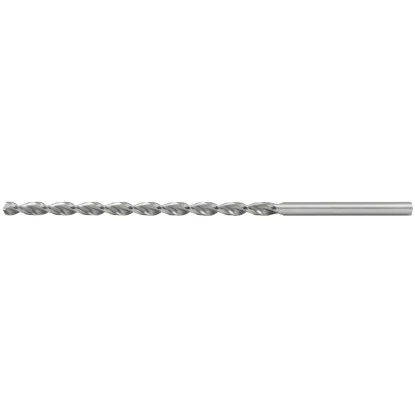

Drill 4 extra long 175/120 HSS DIN 1869 Podgląd zdjęć produktu
