Description
Technical data of the 160x5 HSS saw mill
- working diameter D - 160 mm
- bore diameter d - 32 mm
- working width L - 5 mm
- number of blades Z - 62
Cutting parameters of ball mill 160x5 mm
| ISO symbol | Material | Revolutions n [obr/min] | Total feed [mm/min] |
|---|---|---|---|
| P | Steel | 99 | 60-350 |
| M | Stainless steel | 40 | 30-150 |
| K | Cast iron | 80 | 75-350 |
| N | Aluminum and light metals | 796 | 2800-8500 |
| Copper | 298 | 500-2000 | |
| Brass | 398 | 700-4000 |
May be useful
Cutting parameters calculator

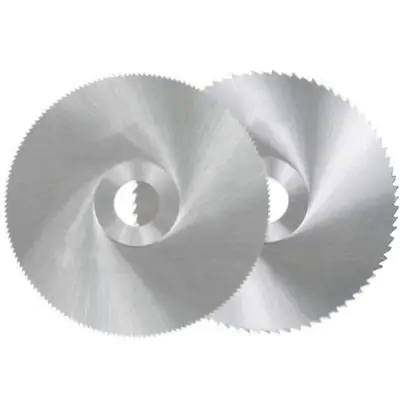

Side and face milling cutter hSS 160 x5 NFTe ball mill for metal
High-end circular saw blades 160 x5 mm Globus mounted disc milling cutter, commonly known as ball milling cutter. Type of NFTe cutter with the following dimensions: width 5 mm, diameter 160 mm, number of teeth 62, shank cylindrical hole. It is suitable for performing professional machining of hard and hard-to-machine materials of the P1.2 - P1.3 class (unalloyed steels, metals, non-ferrous metals, metal alloys, thermosetting plastics). The 160-slotted disc milling cutters offered in our store are suitable for milling narrow grooves, grooves and recesses, for cutting profiles and cutting through pipes. The biggest advantage of the milling cutters we offer is high hardness and durability, as well as resistance to abrasion under high temperature (up to 600 degrees C). The use of special HSS high-speed steel for the production of cutters allows high-speed cutting at increased speed, even in very difficult conditions.
Product accessories
Reviews
No customer reviews for the moment.
Shipping
All orders are delivered by courier company GLS. For orders exceeding 369 PLN gross shipping is FREE
| Courier GLS | Przelew24 / Prepayment | 14,76 zł gross | Delivery time 1 working day |
| Courier GLS | Cash on delivery | 17,26 zł gross | Lead time 1 working day |
