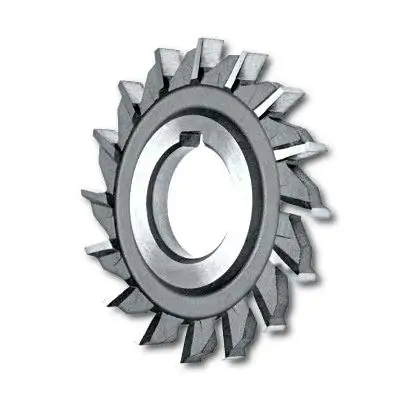

Side and face milling cutter 125X14 DIN 885 BH HSS

Technical data of the three-sided milling cutter 125 x14

- working diameter D - 125 mm,

- bore diameter d - 32 mm

- working width L - 14 mm

- number of blades Z - 22

Side and face milling cutter three-sided milling cutter 125 straight blades

Three-sided cutter 125 x14 DIN 885 BH is a cutter with straight blades, which has blades on the short cylindrical surface and on both faces. The width of the b cutter is selected according to the width of the groove to be milled. It is made of high-grade HSS-SK5 high-speed steel. Recommended for fine machining and finishing of materials giving short chips such as gray cast iron, cast steel, brass, bronze, tool alloy steels.

High-quality 125 face-mounted three-sided disc cutter, type NFTa, according to the dimensional standard DIN 885. It is a cutter with a working diameter of 125 mm and a working width of 14 mm. It is a BH-type cutter - a three-sided cutter with straight blades. The NFTa insert cutters in our store are made of modern high speed steel HSS (High Speed Steel). They are suitable for machining inserts or narrow grooves and also for cutting metal parts. The cutters are recommended for fine and finishing machining. They have the advantage of increased resistance to harsh cutting conditions, as well as increased resistance to potential mechanical damage caused when cutting hard and hard-to-machine materials. The cutters are recommended for various types of conventional machine tools as well as CNC-controlled machine tools.
