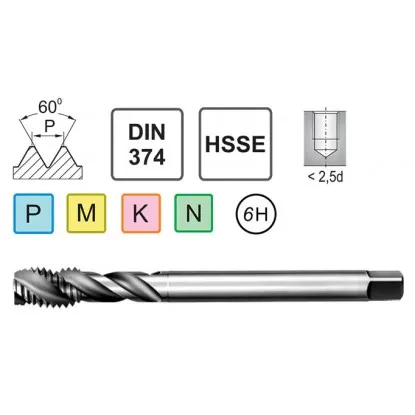

copy of UNF 7/8-14 DIN 374/40 C SE Fanar taps
38,84 € brutto
Cena netto: 31,58 €
Beschreibung
Technical data of 7/8-14 UNF machine threader
- nominal diameter d1 - 7/8-14,
- thread pitch P - 14" coils per inch,
- total length l1 - 125 mm,
- length of the working part l2 - 24 mm,
- length of the usable part l3 - 17 mm,
- diameter of the shank part d2 - 18 mm,
- size of the square driver - 14.5 mm,
- diameter of the threaded hole - 20,4 mm
- cut C - (2÷3) P
Machine tapping 7/8-14 UNF for stainless steel, American
Professional 7/8-14 UNF machine tapping thread er with through shank in accordance with DIN 374. It is suitable for machine making American unified threads. These threads are UNF type - fine threads, 7/8 inch diameter, 14 turns per inch. The outline of the threads is triangular with an angle of 60 degrees. Type of nut D - with blind and through holes with long thread run-out. The tolerance class of the made threads is 2B. The 7/8-14 UNF unified machine threaders offered to you are made with the highest precision from special cobalt high-speed steel HSSE (High Speed Steel). This specialized tool steel is characterized by high wear resistance even when exposed to high temperatures (up to 600 degrees C) generated during high-speed machining. Thanks to it, the threaders in question are rarely subject to mechanical damage such as breaking, cracking, chipping, chipping and even dulling. They are suitable for machining unalloyed steels, metals, nonferrous metals, metal alloys and others.
