copy of UNC 1/2-13 DIN 376 C HSSE threader
18,77 € brutto
Cena netto: 15,26 €
Beschreibung

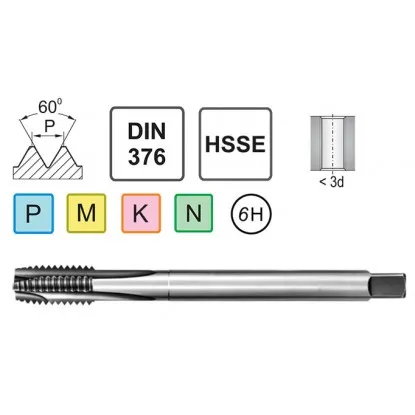

Technical data of 1/2-13 UNC machine threader
- nominal diameter d1 - 1/2-13
- thread pitch P - 13 turns per inch,
- total length l1 - 110 mm,
- length of the working part l2 - 24 mm,
- diameter of the shank part d2 - 9 mm,
- size of the square driver - 7 mm,
- diameter of the threaded hole - 10,8 mm
- cut C - (2÷3) P
Machine tapping 1/2-13 UNC for stainless steel
Professional 1/2-13 UNC machine tapping machine taps with extended shank for cutting ordinary unified threads type UNC 1/2-13. These are American cylindrical unified threads with triangular outline (angle 60 degrees). The tolerance class of the threads made is 2B. Type of outline C - for threading short through holes. Our offer includes unified machine threaders made of modern high-speed steel HSSE (High Speed Steel). This unique material allows much higher cutting parameters, including higher cutting performance and thus shorter machining time. In addition, high-speed steel significantly expands the catalog of machinable materials. These include unalloyed (carbon) steels, metals, non-ferrous metals, metal alloys, plastics. 1/2-13 UNC machine t aps are also resistant to harsh cutting conditions and their blades are rarely subject to breakage, cracking, chipping, breaking out and dulling. The taps are dedicated to individual customers and large companies.
Product accessories
Die UNC 1/2-13 2A HSS DIN 22568 Cztool
Artikel-Nr.: 0000005987 Auf Lager > 10 items
9,47 €
11,65 € brutto
Hand Tap UNC 1/2-13 DIN 352/3 HSS
Artikel-Nr.: 0000007399 Auf Lager > 10 items
23,16 €
28,48 € brutto
