Beschreibung
Technical data of folding countersink 10x31 45 degrees
- angle alpha- 45 degrees,
- minimum diameter of the hole da - 10 mm,
- maximum diameter D - 31 mm,
- diameter of the shank part d - 16 mm,
- total length of the countersink L - 100 mm,
- length of the working part l - 35 mm,
- number of blades Z - 2
- working height a - 10,8 mm.

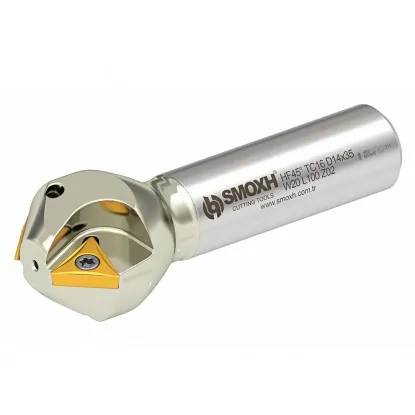

Folding countersink conical 10x31 45 degrees
Countersink - folding countersink 10 x31 conical 10x31, ACM45-TC16-D10X31-W16-L100-Z02 (equivalent to Dolfamex 215.17) made by Turkish company AKKO. This countersink has 2 blades for TCM multi-tool inserts.... 16T3. Professional 10x31 folding count ersink (chamfer), having 2 blades for multi-cutting inserts. It is suitable for countersinking previously drilled holes at an alpha angle of 45 degrees or for chamfering the side edges. It is a countersink in accordance with 215.17 10x30/45 Z-2. Replaceable inserts guarantee a long period of use of the tool and at the same time the possibility of reducing overall machining costs. An important advantage of the countersink is also the Weldon cylindrical shank, which increases the versatility of the tool. The manufacturer of the countersink is the well-known and world-renowned Turkish company AKKO. Its specialty is the production of folding tools for professional metalworking. The countersinks offered by AKKO are characterized by high quality, functionality, multitasking and a relatively low price. The countersinks in our offer are dedicated to both individual customers and large manufacturing plants.
The tool does not come with multi-cutting inserts, they can be purchased in the section at this address: Carbide insert TCMT 16T308
Product accessories
Carbide insert TCMT 16T308 H6310 Horn
Artikel-Nr.: 0000006146 Auf Lager > 10 items
3,42 €
4,21 € brutto
Carbide insert TCMT 16T304 H6310 Horn
Artikel-Nr.: 0000007829 Auf Lager > 10 items
3,42 €
4,21 € brutto
