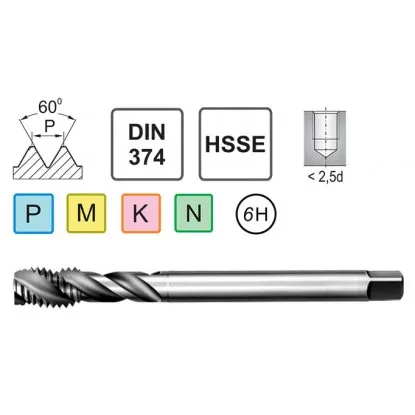

UNF 1.1/8-12 DIN 374 C HSSE taps
61,50 € brutto
Cena netto: 50,00 €
Beschreibung
Technical data of machine tapping UNF 1.1/8-12
- nominal diameter d1 - 1.1/8-12 UNF
- thread pitch P - 12 turns,
- total length l1 - 150 mm,
- length of the working part l2 - 27 mm,
- diameter of the shank part d2 - 22 mm,
- size of square driver a - 18 mm,
- cut C - (2÷3) P
- diameter of the threaded hole - 26.5 mm
Machine tapping UNF 1.1/8-12 for steel and stainless steel
High quality professional1.1/8-12 UNF American fine thread machine taps with short nut (2-3 coil) - has torsion chip grooves. Manufacturer Narex with a general purpose through shank for cutting common threads unified type UNF, diameter 1.1/8 mm, with an angle of 60 degrees, ANSI B-1.1 Angle of the nut C (2-3 P) - for through-holes and blind holes in materials giving a short chip. The threader is suitable for threading nuts in materials marked P1.2 - P1.3, including unalloyed steels, metals, metal alloys (bronze, brass), copper, aluminum, zinc, non-ferrous metals, magnesium alloys and thermoplastics. The tolerance field of the threads made is ISO2-6H. The 11/8-12 machine thread cutter is characterized by high resistance to harsh cutting conditions, and, above all, to the high temperature created during cutting (up to 600 degrees C). The blade of the tapping machine is resistant to possible breakage, cracking, breakage, chipping and dulling. An important feature of the thread cutter is also the ability to achieve high machining efficiency. Thanks to it, machining time is shortened and personnel costs for machine tool operation are reduced. Another advantage of the tapping machine is also the possibility of obtaining high accuracy of cut threads. The thread cutter complies with the standard marked DIN 371.
Product accessories
Drill 26.5 NWKc HSS DIN 345 Baildon
Artikel-Nr.: 834300 Auf Lager > 10 items
30,26 €
37,22 € brutto
Die UNF 1 1/8-12 HSS DIN 22568
Artikel-Nr.: 0000013065 Auf Lager < 10 items
57,89 €
71,21 € brutto
