Beschreibung
Technical data of lathe knife SRDCN 25x25
- width of the shank h - 25 mm
- width b- 25 mm,
- total length L - 150 mm,
- working height f - 12,5 mm,
- buy as a set - Carbide insert RCMT0602

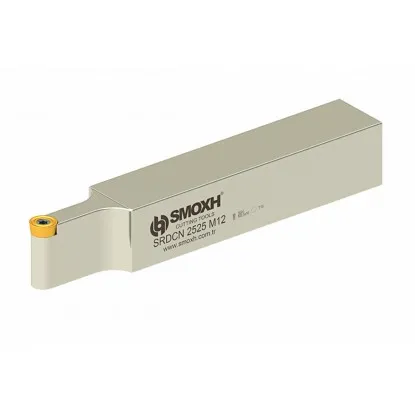

Turning tool folding SRDCN 25x25-06
Insert clamping system - "S"
Most external turning knives, positive or negative boring knives geometry of knives.
Single-sided replaceable inserts clamped on the surface of the tapered-arc bore with a countersunk screw.
The "S" system is the most common system of fixing indexable inserts. It is characterized by simplicity, high reliability, very good repeatability of the blade position and the ability to mount inserts of small dimensions.
The main area of application of SRDCN 25x25-06 folding knives with inserts clamped in the "S" system is finishing of external surfaces and hole surfaces (especially holes with small diameters), but they are also used for roughing.
* Carbide insert the cutting tool shown in the picture is not included in the lathe knife, it must be purchased separately
Product accessories
Carbide insert RCMT 0602 MO H6310 Horn
Artikel-Nr.: 0000011913 Auf Lager > 10 items
3,68 €
4,53 € brutto
