Beschreibung
Technical data of long threader M20 left
- nominal diameter d1 - M20
- thread pitch P - 2,5 mm,
- total length l1 - 220 mm,
- length of the working part l2 - 50 mm,
- diameter of the shank part d2 - 16 mm,
- size of the square driver - 12,5 mm,
- diameter of the threaded hole - 17,5 mm

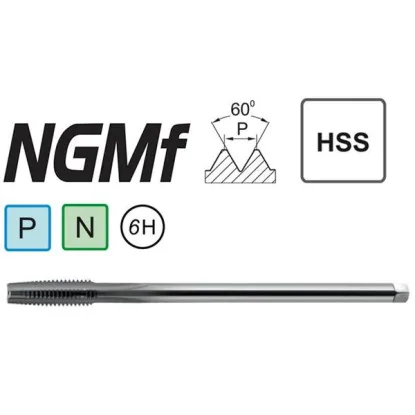

Machine long threader M20 left
M20 long machine threader NGMf for nuts. It can also be used for threading parts that require a long reach of the tapping machine. It can be used to cut metric ordinary threads, left-hand (LH), type M, diameter 20 mm, with an angle of 60 degrees, ISO DIN 13. The M20 machine long and metric machine long threaders in question are made of HSS (High Speed Steel), and the tolerance field of the threads made is ISO2-6H. They are characterized by high quality workmanship, high strength to withstand harsh working conditions and also high machinability. The machine threaders we offer also allow increased cutting efficiency, and thus shorter machining time for a single workpiece. Their use is beneficial not only for technical reasons, but also for economic reasons. Taps can be used for machining ordinary steel, unalloyed steel, metals, nonferrous metals, metal alloys and plastics.
Product accessories
Tapered countersink 20.5/90 DIN 335 B HSS
Artikel-Nr.: 0000007357
21,05 €
25,89 € brutto
Out of stock
Machine Tap M20 LH DIN 376 B HSSE Fanar
Artikel-Nr.: 14441 Auf Lager < 10 items
36,84 €
45,32 € brutto
