Beschreibung
Technical data of the hand tapping machine M12x1,25 left
- thread diameter d1 - 12 mm
- thread pitch P - 1.25 mm
- total length l1 - 87 mm
- length of working part l2 - 24 mm
- diameter of grip part d2 - 9 mm
- length of the side of the square driver a - 7,1 mm
- threaded hole - 10.8 mm

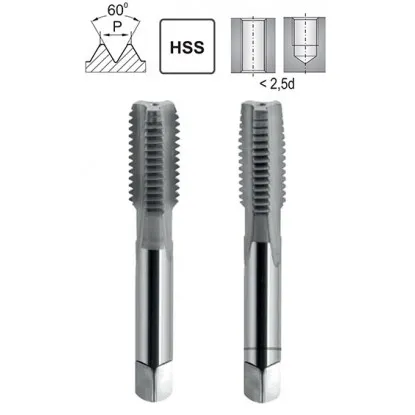

Hand taps M12x1.25 left
Hand taps M12x1,25 left fine thread HSS. A set of professional taps for cutting metric fine-coil, left-hand M12x1.25 threads, with an angle of 60 degrees, ISO DIN-13. They can be used to thread through-holes and blind holes in materials marked with the symbol P1.2 - P1.3, including but not limited to metals, carbon steels - unalloyed, non-ferrous metals, metal alloys and others. Threading is done manually using a knob, in two passes. Firstly, the threader with an 8P nut is used and then the finishing threader with a 2P nut. The advantage of the offered M12x1,25 left hand t aps is their production from modern high-speed tool steel HSS - High Speed Steel. This type of material influences the possibility of obtaining greater efficiency of machining, and at the same time high resistance of the threading blade to possible damage during operation. An additional advantage of hand threaders M12x1,25 left produced from HSS is the possibility of obtaining very high precision of cutting. The tolerance field of the threads made is ISO2 (6H). The threaders comply with DIN 2181.
Product accessories
Die M12X1.25 LH HSS DIN 22 568
Artikel-Nr.: 0000011882 Auf Lager < 10 items
10,53 €
12,95 € brutto
