Beschreibung
Technical data of lathe knife SDJCR 25x25
- width of shank h - 25 mm
- width b- 25 mm,
- total length L - 150 mm,
- working height f - 32 mm,
- buy in set - Carbide insert DCMT11T308

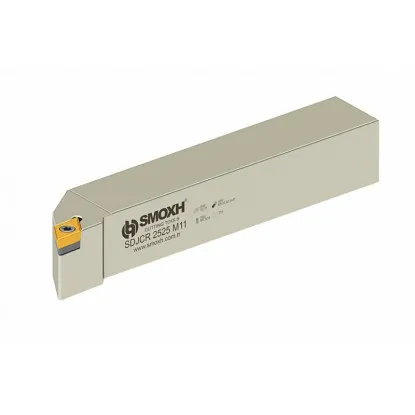

Turning tool folding SDJCR 25x25-11
Insert clamping system - "S"
Most external turning knives, positive or negative boring geometry knives.
Single-sided indexable inserts mounted on the surface of the tapered-arc bore with a countersunk screw.
The "S" system is the most common system of fixing indexable inserts. It is characterized by simplicity, high reliability, very good repeatability of the blade position and the ability to mount inserts of small dimensions.
The main area of application of SDJCR 25x25-11 folding knives with inserts clamped in the "S" system is finishing of external surfaces and hole surfaces (especially holes with small diameters), but they are also used for roughing.
The "S" system is the most widely used system for clamping indexable inserts. It is characterized by simplicity, high reliability, very good repeatability of the blade position and the ability to mount inserts of small dimensions.
The main area of application of knives with inserts clamped in the "S" system is finishing of external surfaces and surfaces of holes (especially holes with small diameters), but they are also used for roughing.
* Carbide insert the cutting tool shown in the picture is not included in the lathe knife, it must be purchased separately
