Beschreibung
Technical data of lathe boring knife S32 MTUNR 16
- diameter of the shank part d - 32,0 mm
- total length L - 300 mm
- distance from knife axis f - 22,0 mm
- minimum hole Dmin - 40,0 mm
- buy in set - Carbide insert TNMG160408

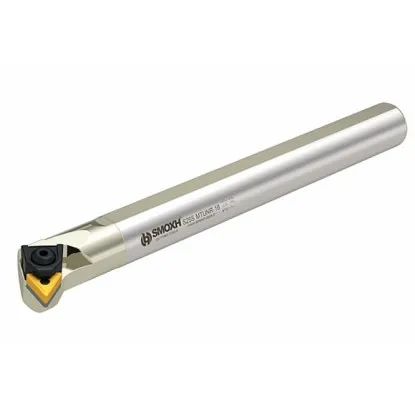

Turning tool s32 MTUNR 16 right hand boring bar
Mounting SYSTEM "M" - positive or negative blade geometry.
Interchangeable inserts single-sided (insert application angle equal to 11°) or double-sided (insert application angle equal to 0°), square and triangular, with a flat contact surface, fixed on the contact surface with a screw head that presses the insert through a chipbreaker made of carbide laid on it. S25 MTUNR 16 knives with inserts clamped in the "M" system are used for roughing (negative geometry) and finishing (positive geometry) of external surfaces and holes (positive geometry).
The "M" system is characterized by easy insert change and good repeatability of the blade position. The superimposed chipbreaker makes clamping more difficult, but gives the possibility to adjust the position of the chipbreaker edge.
* Carbide insert the cutting tool shown in the picture is not included in the turning knife, it must be purchased separately
